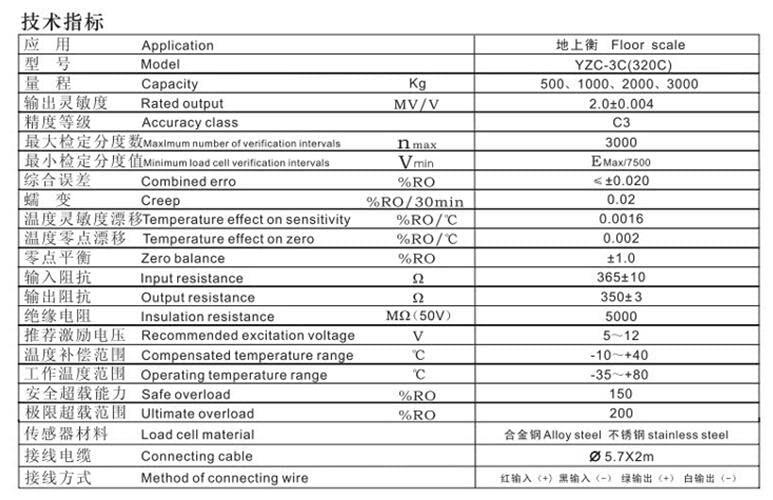

YZC-320C 3-inch Large Screen Display kit Loadometer Floor Scales Electronic Load Cells Platform Weighbridge（Wired Connection） The kit includes: 4PCS load cells, 1PCS junction box, 1PCS 3-inch screen display, 1PCS 10 meter long signal wire Default setting: 1. The 1-ton weighbridge includes 4pcs YZC-320C 0.5 ton load cells 2. The 2-ton weighbridge includes 4pcs YZC-320C 1 ton load cells 3. The 3-ton weighbridge includes 4pcs YZC-320C 2 ton load cells 4. The 5-ton weighbridge includes 4pcs YZC-320C 3 ton load cells Attention: The instrument does not require any calibration or setup. Once the sensors are installed, it can be used by directly powering on. 3-inch Large Screen Display YZC-320C load cell and foot gasket 10 meter long signal wire Junction box Dimension diagram of YZC-320C load cell Technical indicators about YZC-320C-kit Weighbridge Note: 1. load cell - must avoid welding, not blisters, connect the ground wire to prevent lightning strikes. 2. Sensor wiring mode: black E-, red E+, white S-, green S+, yellow to GND [E: power supply, S signal,] The terminal under the terminal has E, S, GND, it can be connected. We also connected the line connecting the meter head, or the wiring order of the line. 3. Four sensors can be connected to one of the terminals.
